X-TREME PLUS SF 2

X-TREME PLUS SF 2"X 25' RED

X-TREME PLUS SF 1"X 25' RED

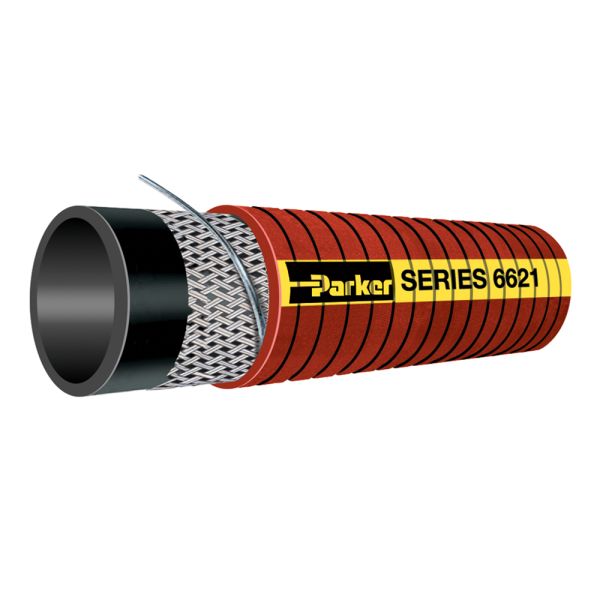

Silicone Greek Corrugated High Temperature Wire Reinforced Coolant Hose is for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment to 75 psi and 392°F, Series 6621
Availability: In stock
SKU
6621-1000025
Lead Time
6
Parker's Series 6621 Silicone Greek Corrugated High Temperature Wire Reinforced Coolant Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The Greek corrugated construction provides superior flexibility for easy routing and installation, resists the elevated temperatures common to engine compartments and is available in long continuous lengths for maximum versatility.

Markets:
• General Industrial
• Transportation

Features/Benefits:
• Tube: Black silicone for superior heat resistance to 392°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Red silicone Greek corrugated for superior flexibility, temperature resistance and easy identification.

Applications:
- media
• Coolant
• Hot water
- usage
• Coolant transfer in heater and coolant circuits
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
• Trucks

Industry Standards:
• SAE J20R2 Class A performance
• TMC RP303B

Safety/Technical:
• Design Factor: 3:1
More Information
Media Water, Coolants
Maximum Operating Pressure 75 psi, 5 bar
Division Hose Products Division
Application Engine, Silicone Coolant
Hose Inner Tube Material Black, Silicone
Inside Diameter 25 mm, 1 inch
Maximum Operating Temperature 392 °F, 200 °C
Minimum Operating Temperature -60 °C, -76 °F
Vacuum Pressure Rating 17.7 inch-Hg
Minimum Bend Radius 2 inch, 50 mm
Outside Diameter 35 mm, 1.380 inch
Specifications Met SAE J20R1, Class A, ISO 1307.0
Cover Material Silicone
Design Factor 3:1
Hose Reinforcement Material Multiple Plies of High Temperature Textile with Wire Helix
Weight Parker 0.14 kg, 0.30 lb
Hose I.D. (inch) 1"
Cover Color Red
Minimum Burst Pressure 15.5 bar, 225 psi
Package Type Coil
Cover Structure Glossy, Greek-Corrugated
Standard Pack Qty (ft) 25
Minimum Burst Pressure (psi) 225
