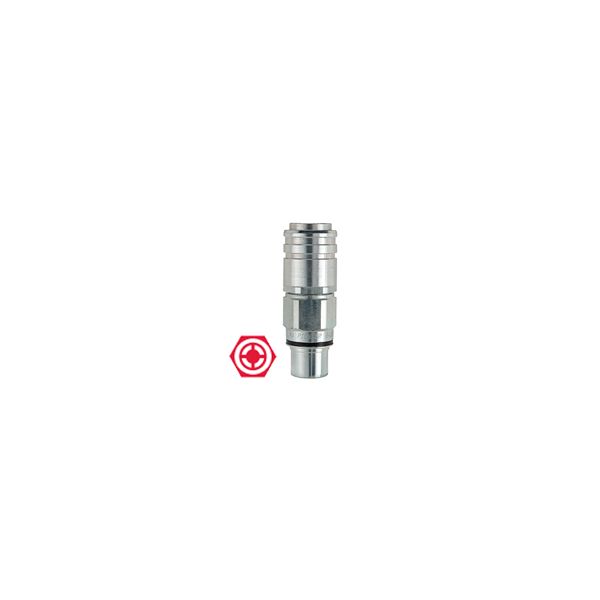

Pioneer 8450 Series agricultural Couplers (hydraulic) 3000 psi, will connect under pressure with 8010 Series Nipples (ISO 5675 Pioneer universal male tips) while either or both the coupler and nipple are under system pressure.
8450 Series push to connect couplings have poppet valves and a push-pull sleeve design to act as a breakaway when rigidly mounted or held in a 5006-4 clamp. Coupler port ends are 7/8 - 14 ORB threads, male or female, to allow direct mounting to a control valve or rigid tubing.
Technical Characteristics: • Size: 1/2" • Materials: Steel • Port Ends: Male ORB, Female ORB • Seal Options: Nitrile
Markets: • Agriculture
Features/Benefits: • Globally connects with Pioneer male tips (8010 Series) or any other nipples conforming to ISO 5675 • Straight thread ORB fitting allows direct mounting to a control valve or rigid tubing • Connect under system pressure on the coupler side and/or on the nipple side • One handed push to connect operation when the coupler is clamp or rigid mounted • Outer housing keeps dust and dirt away from the sleeve mechanism • Compatible with 5006-4 breakaway clamp
