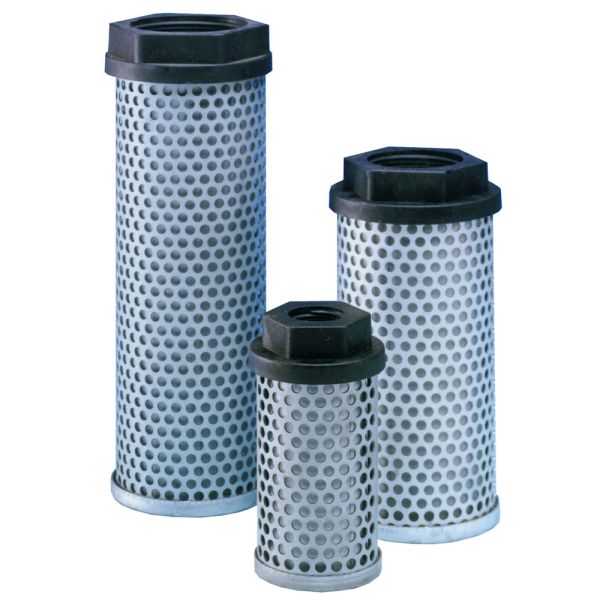

DIFFUSER1-1/2"NPT227L/MIN
DIFFUSER3/4"NPT50L/MIN
Installing a diffuser in a hydraulic reservoir is a simple change that can make a dramatic difference in system efficiency.
With special concentric tubes designed with discharge holes 180o opposed, fluid aeration, foaming and reservoir noise are reduced. Pump life is also extended by reducing cavitation to the pump inlet.
More Information
Division
Engine Mobile Hydraulic and Fuel Filtration Division
Weight Parker
0.60 lbs (0.27 kg)
Length
4.7 inch, 120.0 mm
Flow Rate
13.0 gal/min, 50.0 L/min
Hex Size
1.81 inch, 46.0 mm
Diameter
62.0 mm, 2.4 inch
Thread
0.75 in NPT
