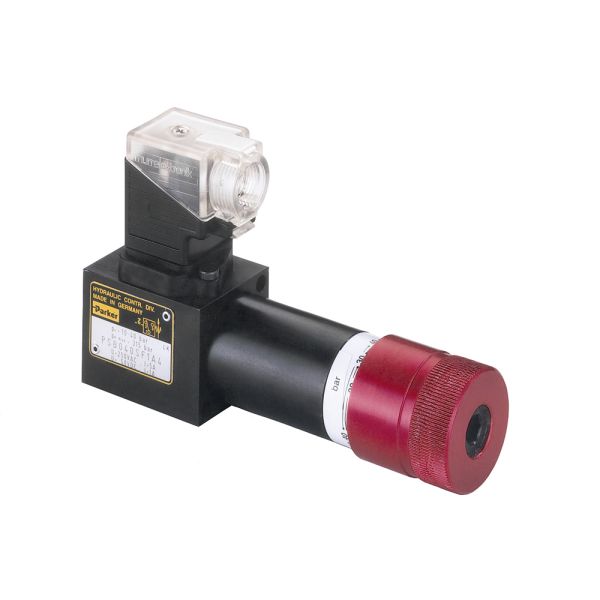

Electro-hydraulic pressure switches series PSB are robust, long-life high performance devices that provide an electrical signal when sensed pressure rises above or falls below the selected setting. The maximum operating pressure is 315 bar.
Parker's robust electro-hydraulic pressure switches series PSB ensure great flexibility for mounting with manifolds, sandwich plates or direct line connections. A hydraulically dampened piston provides accurate response and extended service life. The maximum operating pressure for all varations is 315 bar.
Markets: • Industrial
Features/Benefits: • Robust cast iron construction. Rugged, yet compact product - designed to provide long service life in demanding applications • Four separate adjustable pressure range options - enables the operator to precisely select the desired pressure setting • Flange or pipe mounting - therefore almost universally applicable • Optional keylock adjustment - prevents tampering or unauthorized adjustments in critical applications • IP65 class electrical protection - maintains integrity against moisture in spray or splashdown situations • Short delivery time for most variations - no warehousing necessary
Applications: • Suitable for general hydraulic applications
Function: The spring loaded piston is hydraulically dampened. The PSB provides a very accurate hysteresis between the switching points. The required operating pressure is adjusted by the setscrew. Unauthorised adjustments can be prevented by the optional cylinder lock. The electric element is a micro switch with snap-action contact. Three terminals permit application as "On", "Off" or "Changeover" switch. The electrical connection is made with a 3-pole plug-in connector to EN 175301-803 with ground.
Note: For inductive DC loads a spark discharger should be used to increase service life.
