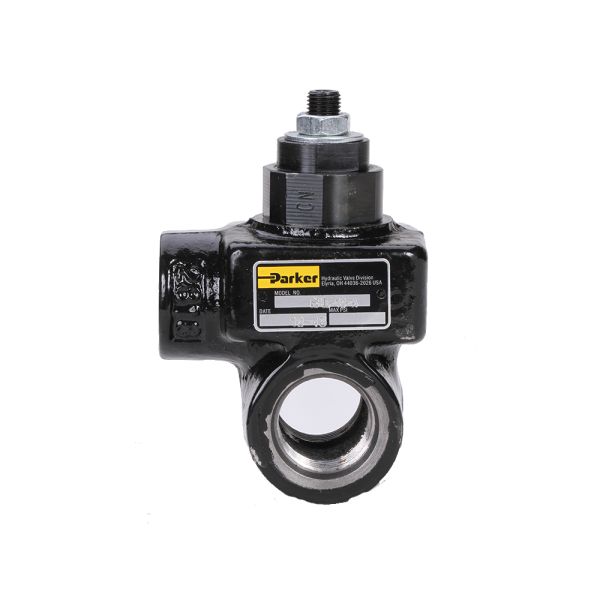

Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.
Parker’s RPJL In-line Relief valves are pilot operated, poppet type relief valve. The valve is a compact, low profile relief design that is screw adjustable from 500 to 5000 PSI. Their best application is a main system relief where smooth consistent performance is required.
Markets: • Aerial • Agricultural Machinery • Construction Equipment • Defense • Forestry Equipment • Marine • Material Handling Equipment • Mining • Misc Transportation • Oil & Gas • Other Mobile • Other Natural Resources • Rail • Refuse • Turf Equipment • Vocational and Municipal Equipment
Features/Benefits: • Compact, low profile design • Hardened and ground poppet • High-tensile compacted graphite body • Pilot operated for smooth, stable operation • Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12 • Rated at 5000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications: • Suitable for various mobile applications
