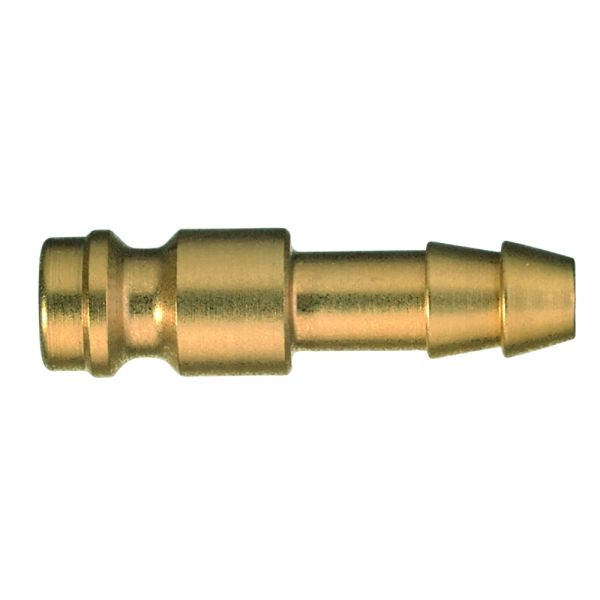

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
- Industrial
- Electronics and energy management
- Rescue Equipment
- Life Science
- Machinery construction
- Material Handling
- Transportation
- Automotive
- Process
- Food & Beverage
Features/Benefits:
- Mini Industrial Coupling
- Single-hand operation for easy and fast connection
- European profile is the most representative profile worldwide
- Dry-break version available
- Additional safety locking system available to prevent unintentional disconnection
| Maximum Operating Pressure | up to 35 bar |
|---|---|
| Division | Low Pressure Connectors Europe Division |
| Compatible Fitting | Series 21 Coupler |
| Application | Medical, Industrial Machinery, Energy Management, Electronics |
| Maximum Operating Temperature | up to 240 °C, up to 464 °F |
| Minimum Operating Temperature | down to -40 °F, down to -40 °C |
| Product Style | Quick-Connect |
| Outside Diameter | n/a mm |
| Specifications Met | RoHS, ATEX |
| Product Type | Pneumatic Quick Couplings |
| Weight Parker | 0.006 kg |
| Body Material | Brass |
| Shape | Straight |
| Materials of Construction | Brass |
| Connection Type | Hose barb |
| Seal Material | Without Seal |
| Flow Rate | 550 L/min (air), 2.7 L/min (water) |
| Plating Type | Without Surface Treatment |
| Coupling Half | Plug |
| Valve Type | Without Valve |
| Brand | Parker, Rectus |
| For Fluid Type | Gases, Water, Air, Compressed Air, Chemical Fluids |
| Interchange Type | European Profile |
| Hex Size | n/a |
| Industry | General Industrial, Healthcare & Life Sciences, Electronics |
| Product Series | Series 21 |
| Technology | Fluid & Gas Handling, Pneumatics |
| Operation Type | n/a |
| Function | Straight-Through |
| Connection Size | 5 mm |
| Region of Origin | Germany |
| Quantity per Box | 10 |
| Diameter | 5 mm (nominal) |
| Version | Single Shut-Off |
| Valve Included | No |
