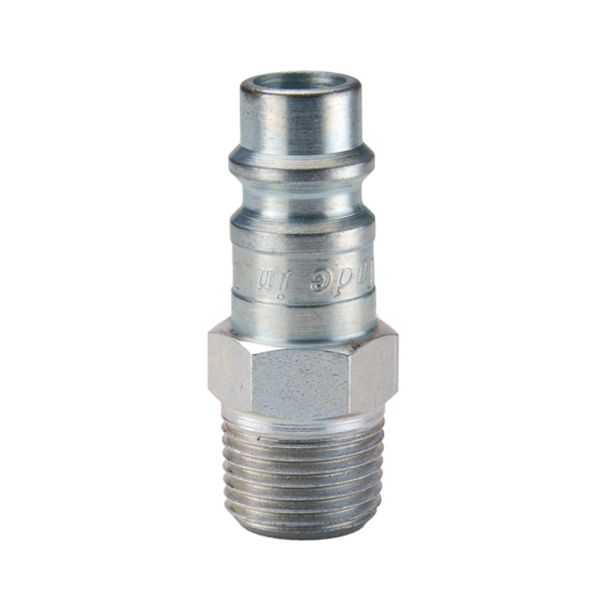

Parker’s Series 25 is industrial coupling with European profile. Coupling system with single-hand operation. High flow valve for optimum flow and low pressure drops. Series stands out for its robust design and long service life even with the harshest use.
Parker’s Series 1600 and 1625 are industrial coupling with European profile. Coupling system with single-hand operation. Suitable for compressed air application with greater than average air consumption. Ultra-High flow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped (series 1625)
Markets:
Series 25 - Electronics and Energy Management
- Tranportation
- Life Science
- Industrial
Series 1600 and 1625 - Electronics and Energy Management
- Transportation
- Industrial
Features/Benefits:
- Industrial coupling with European profile, most representative profile worldwide
- Single-hand operation for easy and fast connection
- High-Flow and Ultra High-Flow valve for optimum flow and low pressure drop
| Media | Water, Steam, chemical fluids, Gases, Pneumatic Media |
|---|---|
| Maximum Operating Pressure | up to 35 bar, up to 507 psi |
| Division | Low Pressure Connectors Europe Division |
| Compatible Fitting | Series 1625 Coupler, Series 25 Coupler, Series 1600 Coupler |
| Application | Industrial Machinery, Air & Gas Compressor, Energy Management, Trucks & Trailers, Pharma, Electronics, Mobile & Defence |
| Maximum Operating Temperature | up to 240 °C, up to 464 °F |
| Minimum Operating Temperature | -40 °F, -40 °C |
| Product Style | Quick-Connect |
| Specifications Met | RoHS, ATEX |
| Product Type | Pneumatic Quick Couplings |
| Weight Parker | 0.0183 kg |
| Length | 30 to 155 mm |
| Body Material | Steel |
| Shape | Straight |
| Materials of Construction | Steel |
| Connection Type | NPTF, Male, NPT ANSI B 1.20.1 Tapered |
| Seal Material | Without Seal |
| Flow Rate | 1800 L/min (air), 28 L/min (water) |
| Plating Type | Zinc-plated |
| Coupling Half | Plug |
| Valve Type | Without Valve |
| Brand | Parker, Rectus |
| For Fluid Type | Gases, Water, Air, Compressed Air, Chemical Fluids |
| Interchange Type | European Profile |
| Hex Size | 13 to 24 mm |
| Industry | Transportation, General Industrial, Healthcare & Life Sciences, Electronics |
| Product Series | Series 25 |
| Technology | Fluid & Gas Handling, Pneumatics |
| Operation Type | Sleeve |
| Function | Straight-Through |
| Connection Size | NPT 1/4 inch, 1/4"-18 |
| Region of Origin | Germany |
| Quantity per Box | 10 |
| Diameter | 7.8 mm (nominal) |
| Version | Straight-Through |
| Valve Included | No |
