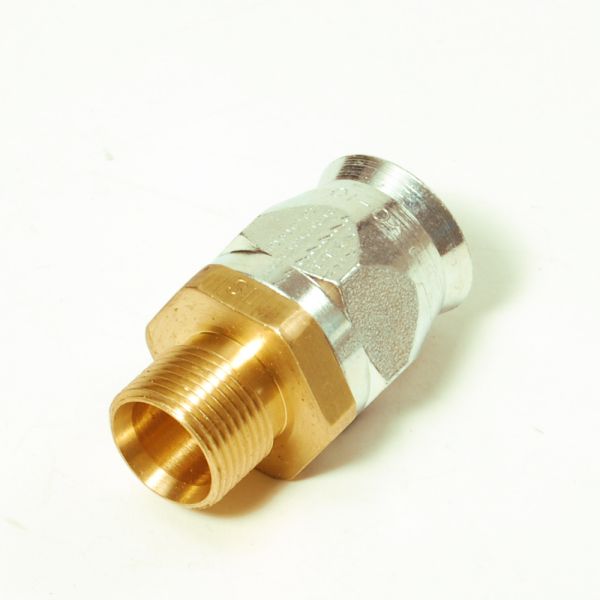

STEEL FTG

Details

Parker's 90 Series fittings are used with 919 and 919B PTFE hoses from the Parflex division. Unlike crimp fittings, Parker's Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. This series also includes fitting components to reduce inventory or replace part of the fitting when required.

Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment

Features:
• No crimper needed for installation

Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines

More Information

More Information
Maximum Operating Pressure	20.7 MPa, 207 bar, 3000 psi (Dependent on hose)
Division	Parflex Division
Application	Chemical Transfer, Hydraulics, Tools & Equipment, General Industrial, Medical, Pneumatics, Ultra High Purity, Fluid Control, Instrumentation, Semiconductor
Product Style	Compression Air Brake
Specifications Met	n/a
Product Type	Hose Fittings
Body Material	Steel (Socket), Brass (Nipple and Ferrule)
Shape	Straight
Tube Outside Diameter	n/a
Dimensional Weight	0.0522 lb
Length (inch)	2.09"
Connection 2 Size	1"-18 inch Thread, 1"-18
Connection 1 Size	5/8 inch Hose I.D., -12 (Size), 15.9 mm
Brand	Parker
Connection 2 Type	Compression Air Brake
For Fluid Type	Steam, Gases, Hydraulic Fluids, Chemicals, Water, Pharmaceutical Fluids, Oil, Pneumatic Media
Hose I.D. (inch)	0.625"
Hex Size	1-1/8 inch (see drawing legend H)
Industry	Transportation, Food & Beverage, Semiconductor, Healthcare & Life Sciences, Industrial
Connection 1 Type	Hose
Product Series	90
Configuration	Hose to Port
Technology	Fluid & Gas Handling
Connection Length	52 mm, 1-7/16 inch Cut-off allowance (see drawing legend B)
Fitting Length	53 mm, 2.09 inch (see drawing legend A)
Coating	Chromium 6 Free-plated
Hex Size 1	1-1/8 inch (see drawing legend J)
