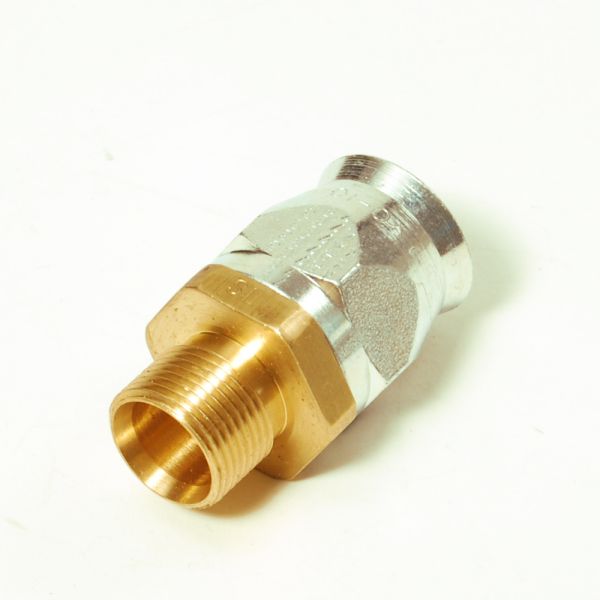

| Maximum Operating Pressure | 20.7 MPa, 207 bar, 3000 psi (Dependent on hose) |
|---|---|
| Division | Parflex Division |
| Application | Chemical Transfer, Hydraulics, Tools & Equipment, General Industrial, Medical, Pneumatics, Ultra High Purity, Fluid Control, Instrumentation, Semiconductor |
| Product Style | Compression Air Brake |
| Specifications Met | n/a |
| Product Type | Hose Fittings |
| Body Material | Steel (Socket), Brass (Nipple and Ferrule) |
| Shape | Straight |
| Tube Outside Diameter | n/a |
| Dimensional Weight | 0.0673 lb |
| Length (inch) | 1.69" |
| Connection 2 Size | 11/16"-20 inch Thread, 11/16"-20 |
| Connection 1 Size | -8 (Size), 10.3 mm, 13/32 inch Hose I.D. |
| Brand | Parker |
| Connection 2 Type | Compression Air Brake |
| For Fluid Type | Steam, Gases, Hydraulic Fluids, Chemicals, Water, Pharmaceutical Fluids, Oil, Pneumatic Media |
| Hose I.D. (inch) | 0.406" |
| Hex Size | 13/16 inch (see drawing legend H) |
| Industry | Transportation, Food & Beverage, Semiconductor, Healthcare & Life Sciences, Industrial |
| Connection 1 Type | Hose |
| Product Series | 90 |
| Configuration | Hose to Port |
| Technology | Fluid & Gas Handling |
| Connection Length | 1-1/16 inch Cut-off allowance (see drawing legend B), 51 mm |
| Fitting Length | 43 mm, 1.69 inch (see drawing legend A) |
| Coating | Chromium 6 Free-plated |
| Hex Size 1 | 13/16 inch (see drawing legend J) |
